Kind&Co is Prepared for Vacuum Hardening of the Largest Possible Die Inserts

08/12/2022

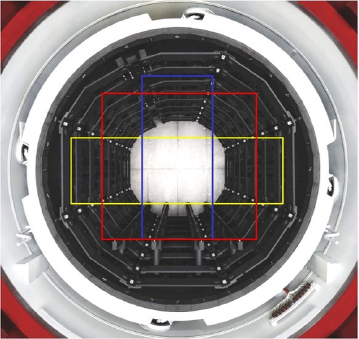

The maximum dimensions that can be chargedare as follows:

• 1,200 mm x 1,200 mm x 2,000 mm

• 1,600 mm x 800 mm x 2,000 mm

• 1,430 mm x 585 mm x 2,000 mm

• With the vacuum hardening furnace IPSEN Turbo Treater ST 6672, Kind&Co has adapted to the largest possible dimensions of die casting dies.

• Usable dimensions
§ W = 1,600 mm
§ H = 1,430 mm
§ L = 2,000 mm

• maximum hardening weight:
§ m = 6,500 kg

• Quenching:
§ N2 , max. 15 bar
§ Recirculation turbine (560 kW, 500 -3600 rpm)

Resource: Kind&Co
