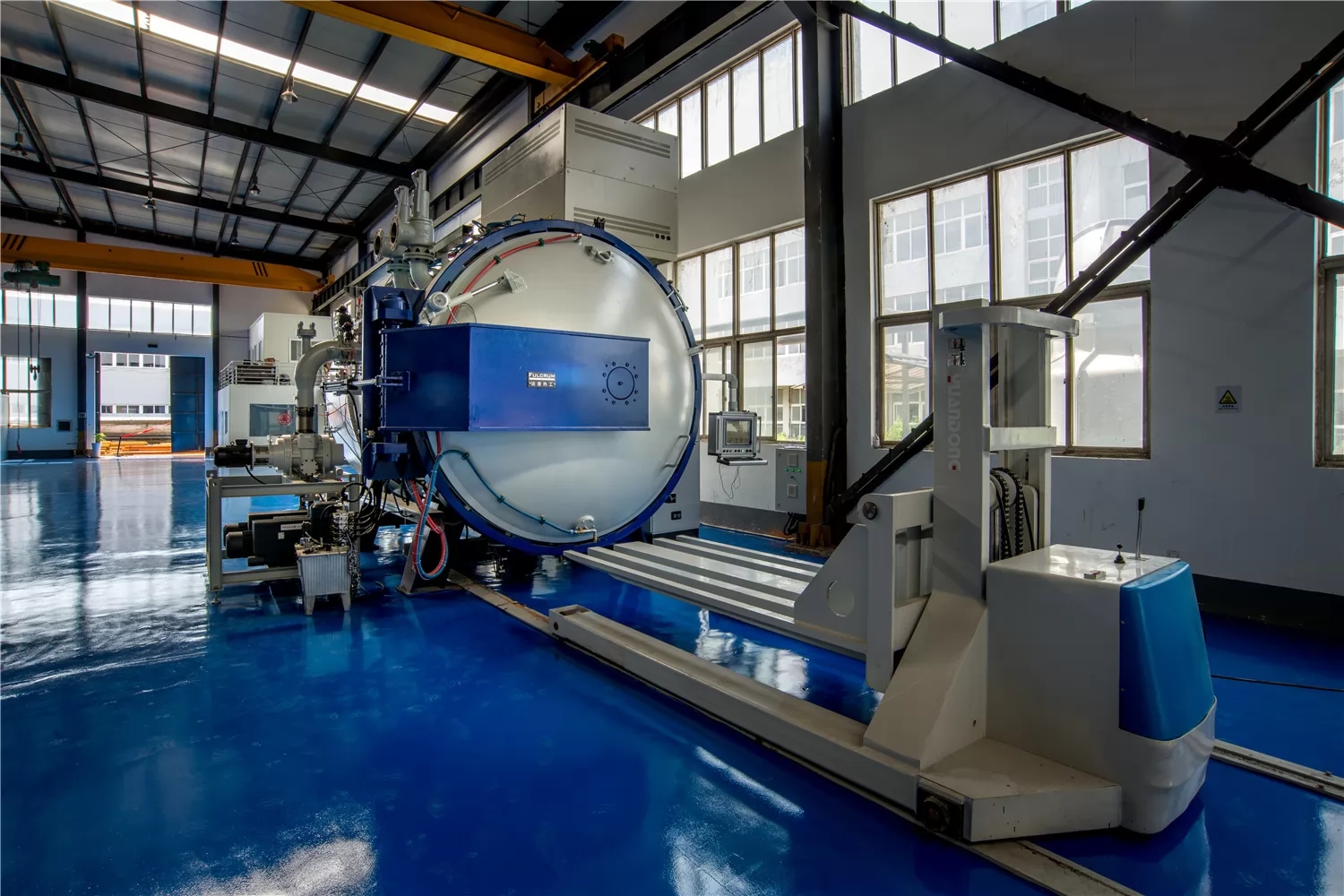

Vacuum Furnace (VAC1)

Effective size: 600mm × 600mm × 900mm

Maximum load: 800kg

Maximum working temperature: 1300 ℃

Maximum quenching pressure: 10Bar

Quenching medium: 99.999% nitrogen

Heating mode: convection heating below 850 ℃, vacuum radiation heating above 850 ℃

Application scope: vacuum quenching, vacuum annealing, vacuum tempering, solution, aging, etc

Vacuum Furnace (VAC3)

Vacuum Furnace (VAC2)

Effective size: 900mm × 900mm × 1200mm

Maximum load: 1500kg

Maximum working temperature: 1300 ℃

Maximum quenching pressure: 12Bar

Quenching medium: 99.999% nitrogen

Heating mode: convection heating below 850 ℃, vacuum radiation heating above 850 ℃

Application scope: vacuum quenching, vacuum annealing, vacuum tempering, solution, aging, etc

Effective size: 1200mm × 1200mm × 2000mm

Maximum load: 7000kg

Maximum working temperature: 1300 ℃

Maximum quenching pressure: 15Bar

Quenching medium: 99.999% nitrogen

Heating mode: convection heating below 850 ℃, vacuum radiation heating above 850 ℃

Application scope: vacuum quenching, vacuum annealing, vacuum tempering, solution, aging, etc

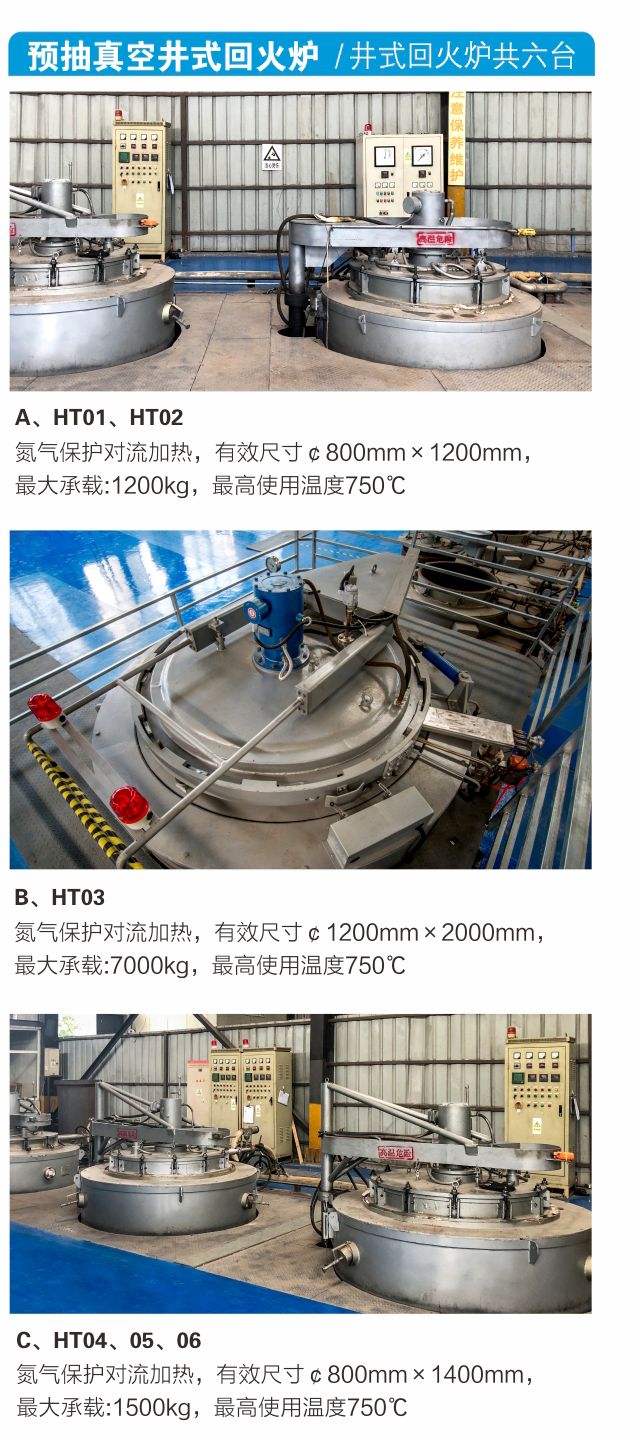

Tempering Furnace(HT01、HT02)

Nitrogen protection convection heating.

Effective size: Φ 800mm × 1200mm

Maximum load: 1200kg

Maximum operating temperature: 750 ℃

Nitrogen protection convection heating.

Effective size: Φ 1200mm × 2000mm

Maximum load: 7000kg

Maximum operating temperature: 750 ℃

Tempering Furnace(HT03)

Tempering Furnace(HT04、HT05、HT06)

Nitrogen protection convection heating.

Effective size: Φ 800mm × 1400mm

Maximum load: 1500kg

Maximum operating temperature: 750 ℃

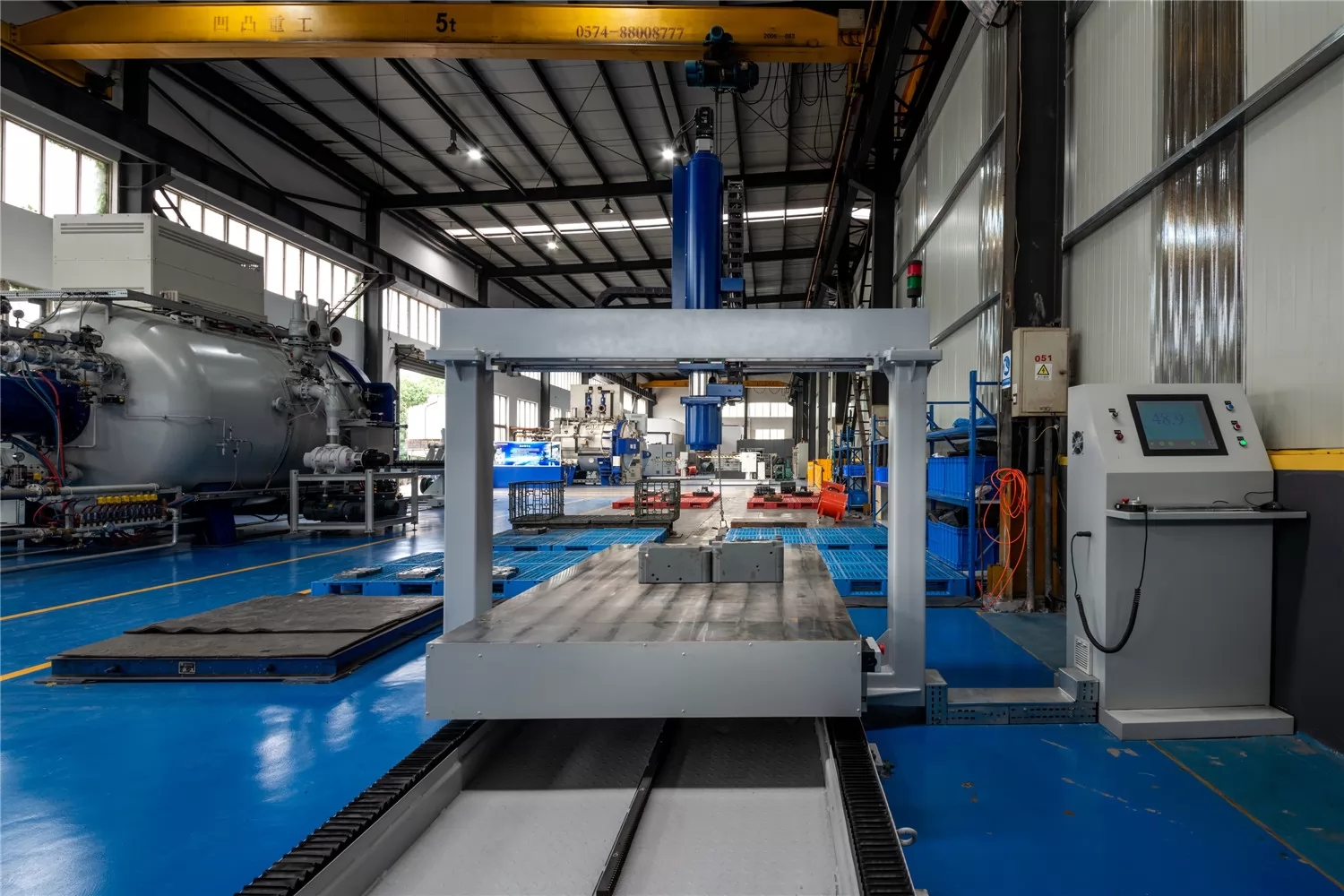

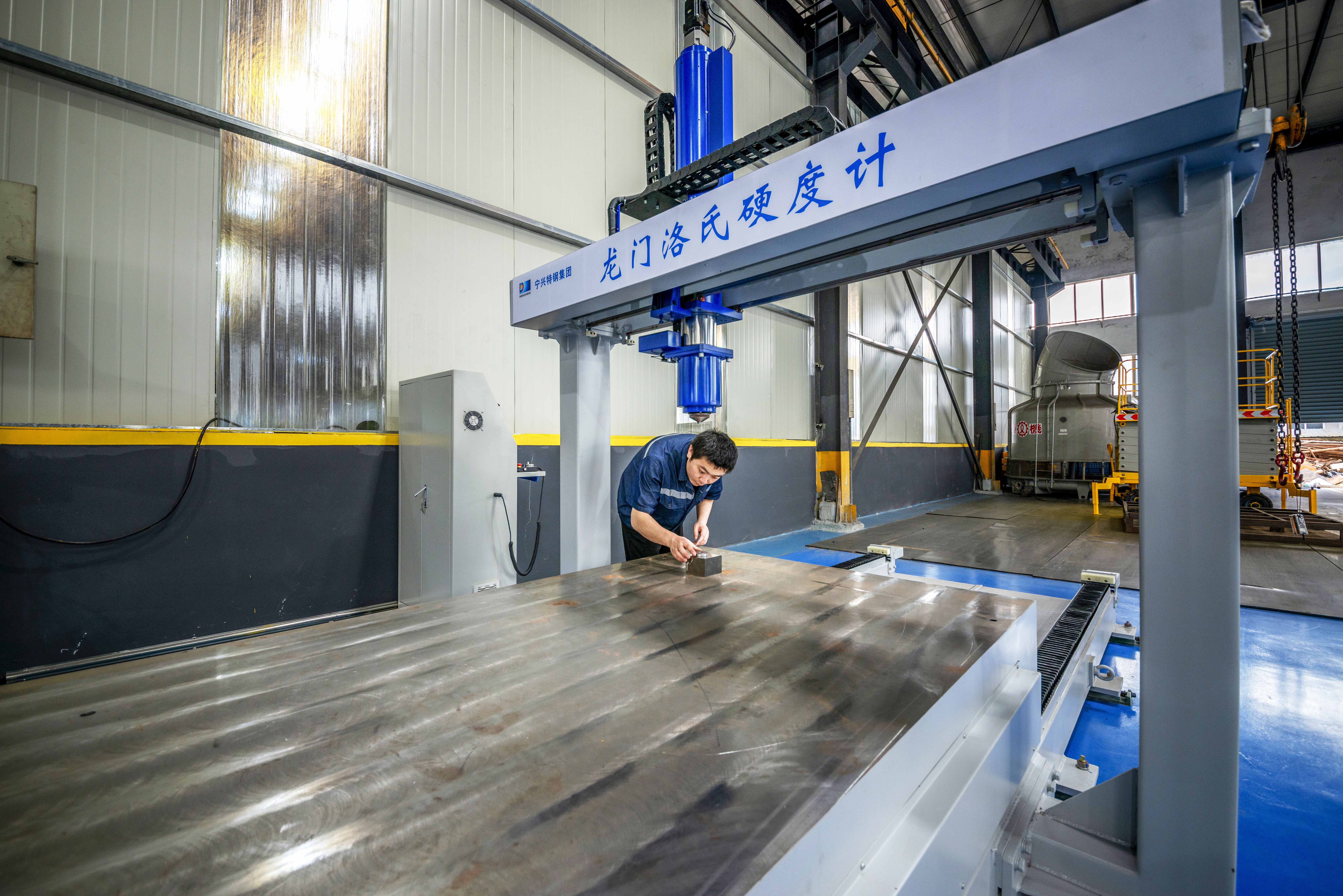

Gantry Rockwell Hardness Tester

Hardness measurement system indication repeatability: ≤ 2.0% or 0.8 Rockwell units

Allowable error of indication: ± 1.5HRC

Maximum overall dimension of workpiece: 2000X1400X500mm

Maximum weight of workpiece: 8000kg
