Model NO.
plastic mold steel 1.2344
Delivery:
FOB
Quantity:

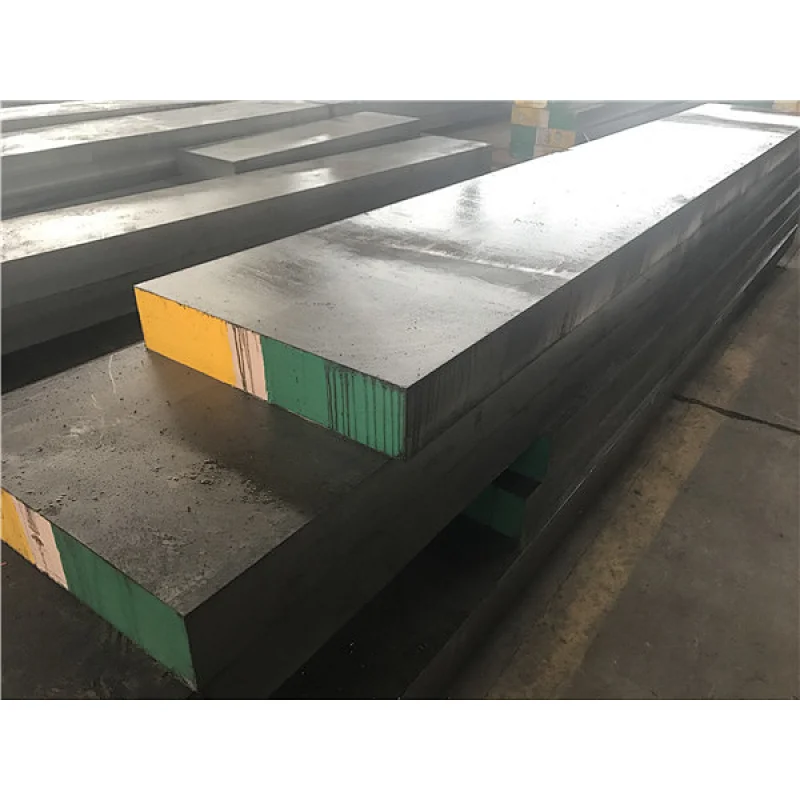

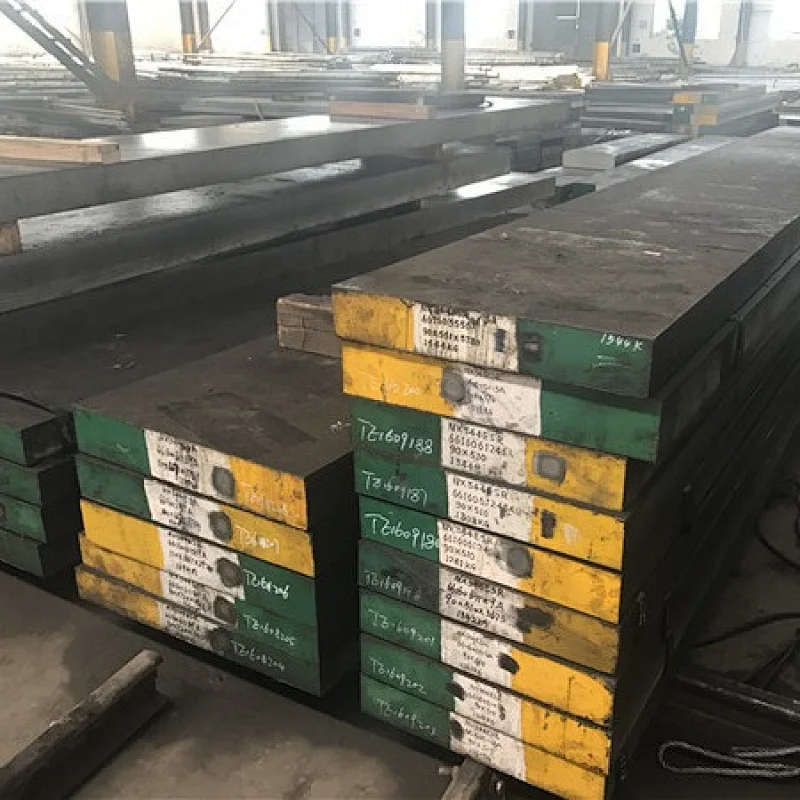

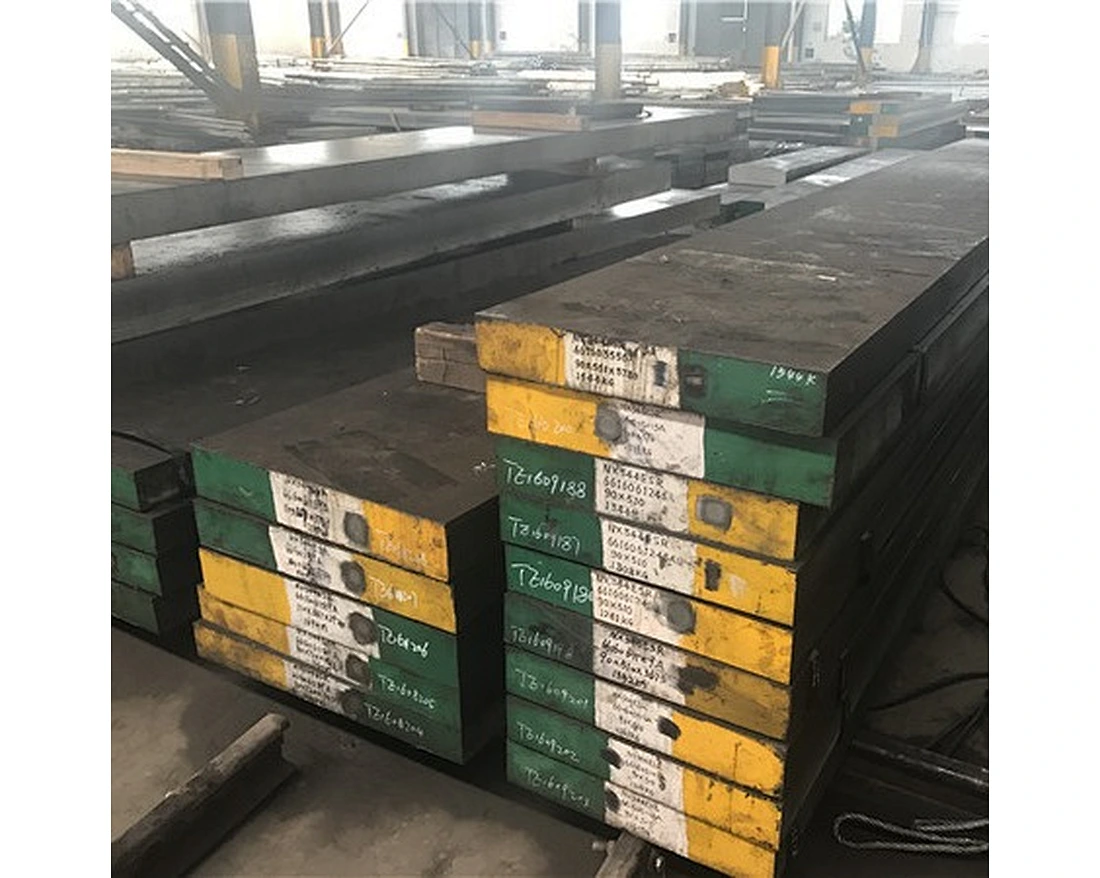

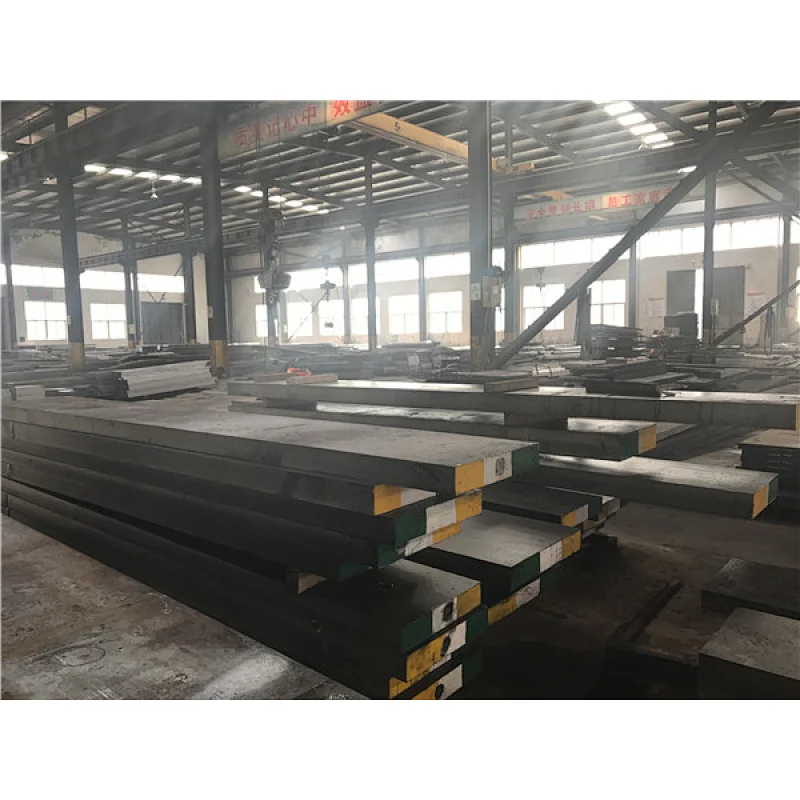

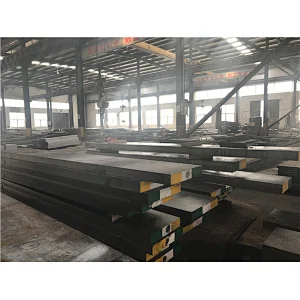

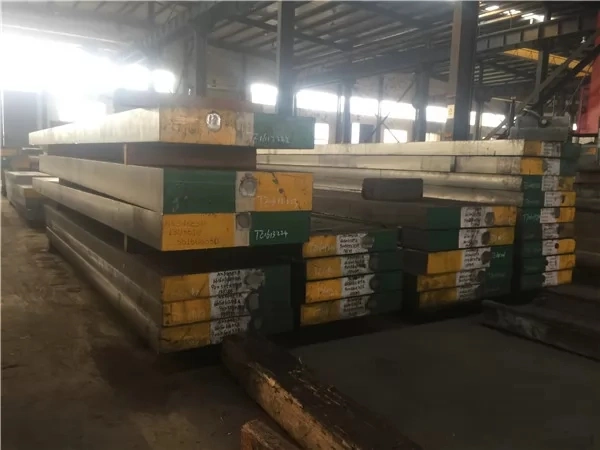

NX344 / 1.2344 ESR Forged Blocks for Plastic Mold


NX344 is a special grade which is developed by our Ningshing Special-Steel.
It is high quality level of 1.2344 ESR, a kind of hot work tool steel.
At the beginning, we develop this grade for making plastic mold for high-grade of snack box because of its better performance on thermal resistance and good toughness that could improve to get a longer lifetime of the mould.

Chemical Composition (%)

CSiMnPSCrMoV
0.360.900.305.001.250.90
0.421.200.500.0150.0035.501.501.20

Dimensions

Thickness(mm)Width(mm)Length(mm)
100-500100-9103000-5800

Delivery Condition
EAF+LF+VD+(ESR), Forged, Spheroidizing Annealed, EFS, Hardness≤230HB, Machined surface,
UT 100% SEP1921 Class 3 E/e,

Spheroidized Microstructure as per standard NADCA207-2003 AS1-AS9

Impact test: Transverse impact test as per ASTM A370, V notch impact test (5 samples, size of 10 x 10 mm),
average value >=11 J (delete max. and min.), single value >=8 J

Forging Technique

Heat Treatment

Heat TemperatuleStart Forging TemperatureFinish Forging TemperatureCooling Method
1020-11501100-1120900-850Pit or Sand Cooling


Annealing
750 to 800°C (1382 to 1472°F)
Slow controlled cooling in furnace at a rate of 10 to 20°C/hr (50 to 68°F/hr) down to approx. 600°C (1112°F), further cooling in air.
Hardness after annealing: max. 235 HB.

Stress relieving

600 to 650°C (1112 to 1202°F)
Slow cooling in furnace; intended to relieve stresses set up by extensive machining, or in complex shapes.
After through heating, hold in neutral atmosphere for 1 - 2 hours.

Hardening

1000 to 1040°C (1832 to 1904°F)
Oil, salt bath (500 - 550°C / 932-1022°F), air
Holding time after temperature equalization: 15 to 30 minutes.
Obtainable hardness:
52 - 56 HRC in oil or salt bath,
50 - 54 HRC in air.

Tempering

Slow heating to tempering temperature immediately after hardening / time in furnace 1 hour for each 20 mm of work piece thickness, but at least 2 hours / cooling in air. It is recommended to temper at least twice. A third tempering cycle for the purpose of stress relieving may be advantageous.
1st tempering approx. 30°C (86°F) above maximum secondary hardness.
2nd tempering to desired working hardness.
The tempering chart shows average tempered hardness values.
3rd for stress relieving at a temperature 30 - 50°C (86 to 122°F) be low highest tempering temperature.
