Mold Base for Plastic injection mold / B Plate
Mold base for plastic injection mold
Plastic Injection Mold
Quantity:

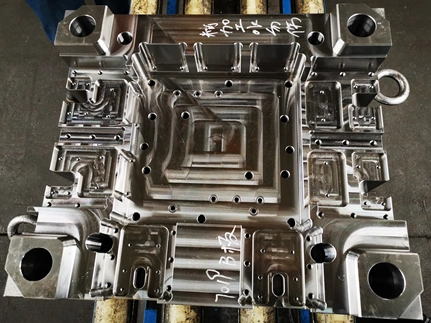

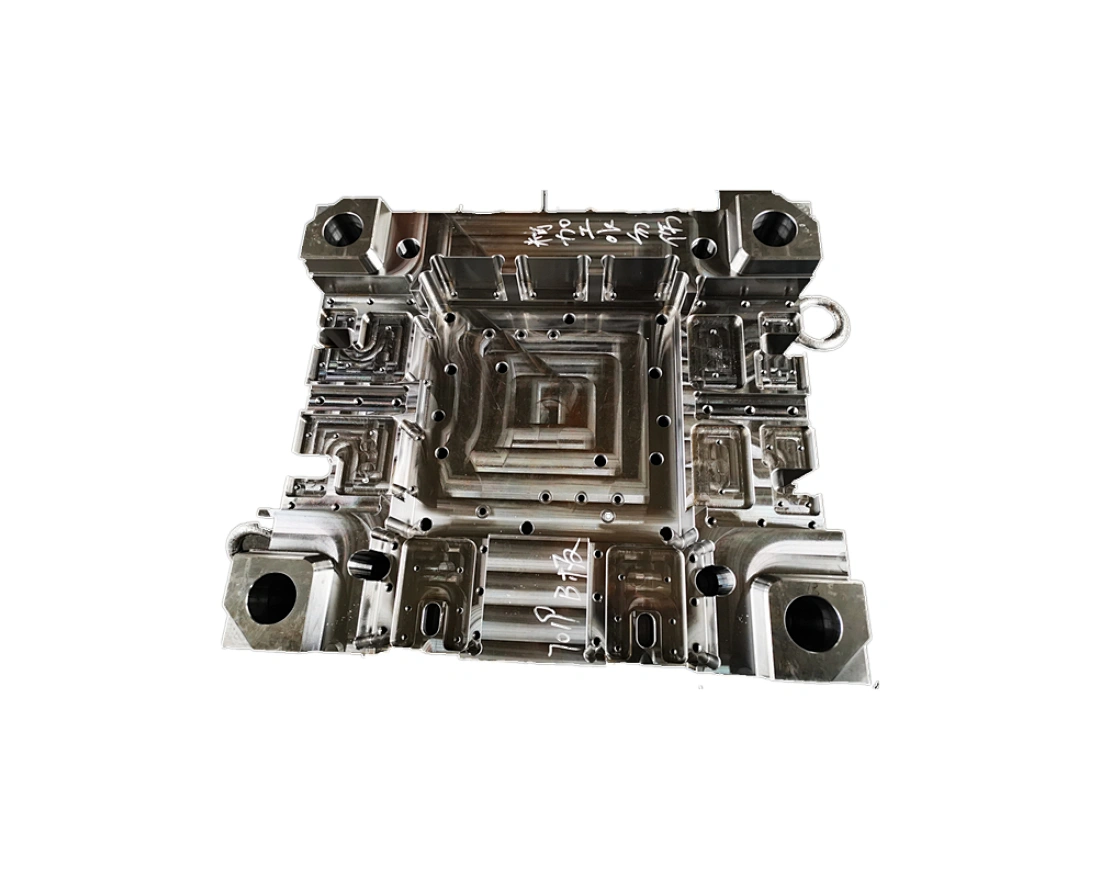

Mold Base for Plastic Injection Mold B Plate
Ningbo Ningshing Precision Machinery Group Co., Ltd. is specializing in Mold Base Business, producing the Medium-Large Sized mold bases for auto, appliance, aerospace industries, and providing service to the domestic and foreign well-known OEMs, mold makers and die casting factories.With the high quality of tool steels in stock, the advanced processing equipments, the mature production process and technical service team and the professional system management, we realize the high quality products performance.

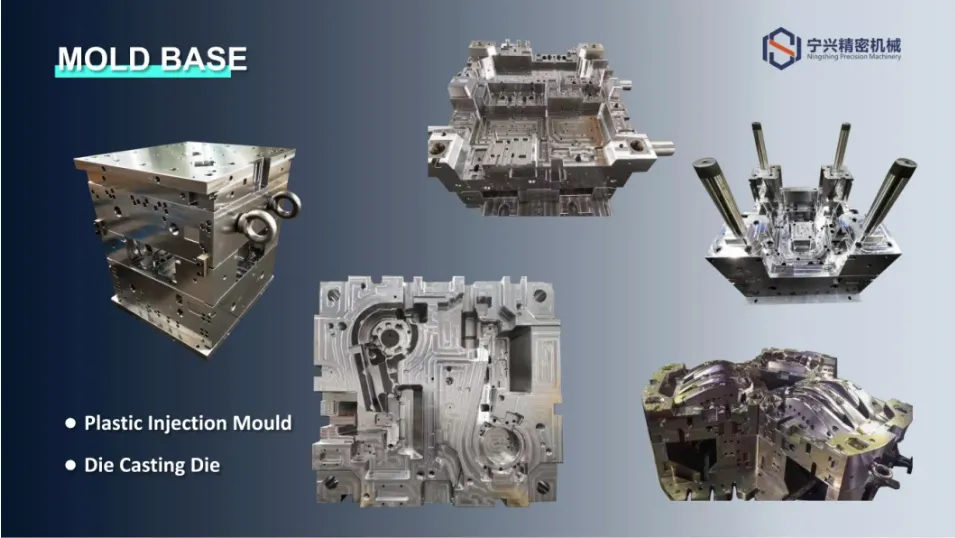

| Product Name | Customized Mold Base for Plastic Mould & Die Casting Die |
| Material | 1.2311/P20; 1.2738/718; 1.2083/420/4Cr13/S136; 1.2344/H13; NAK80; 1.1730/C45/S50C/S355JR etc. |
| CNC Machining Center | 24 sets (6-axis & 5-axis & 3-axis) |
| Dimension | Max 3500 x 2800 mm |
| Load Capacity | Max 25 ton / piece |
| Tolerance | Max ±0.02 mm |
| Deep Hole | Max 2000 mm (drilled from one side) |
| Heat Treatment Furnace | 3 sets (vacuum) Max 7.5 ton |
| Nitriding Furnace | 2 sets |
| Mold Runner | Hot & Cold |
| Cavity | Single & Multiple |
| Mold Standard | HASCO, DME, MISUMI, LKM |
| Design Software | CAD, UG, Pro/E, Catia etc. |
| Measurement Method | CMM, Micrometer |
| Production Management System | MES, ERP, SOP |
| Certification & Quality | ISO 9001:2015, TS16949, TUV, SGS |

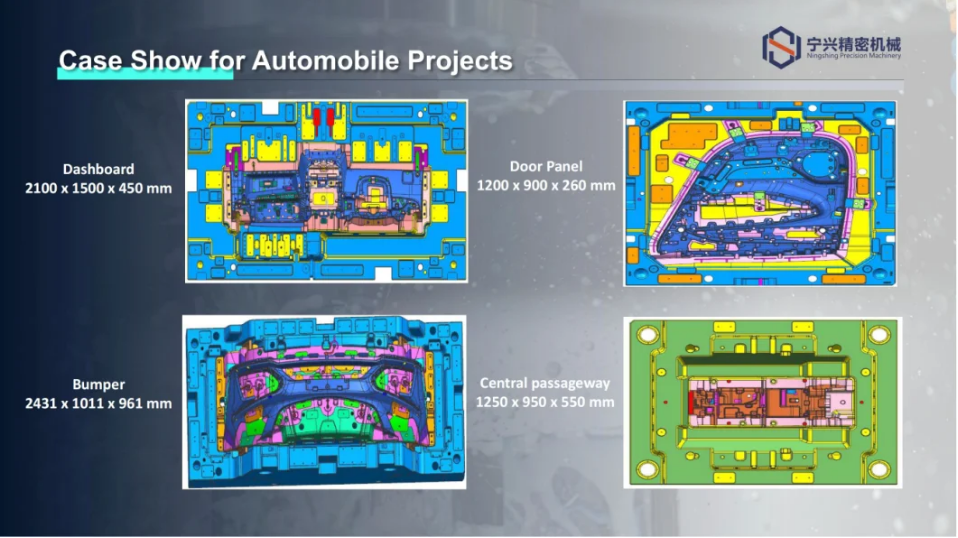

| Application | Automobile, Household Appliance, Medical Device, Communications, Electronics etc. |
