JIS SKD11 Tool Steel, Tool steel flat | Ningshing Special-Steel

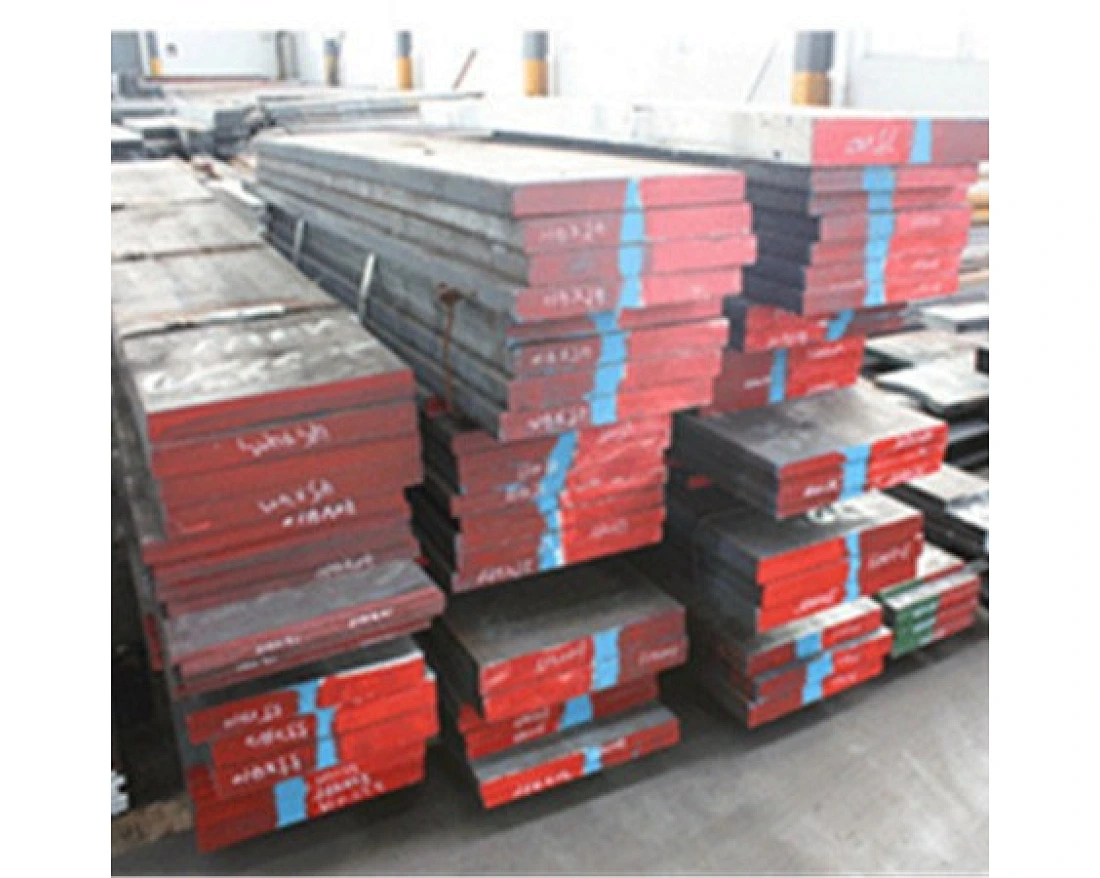

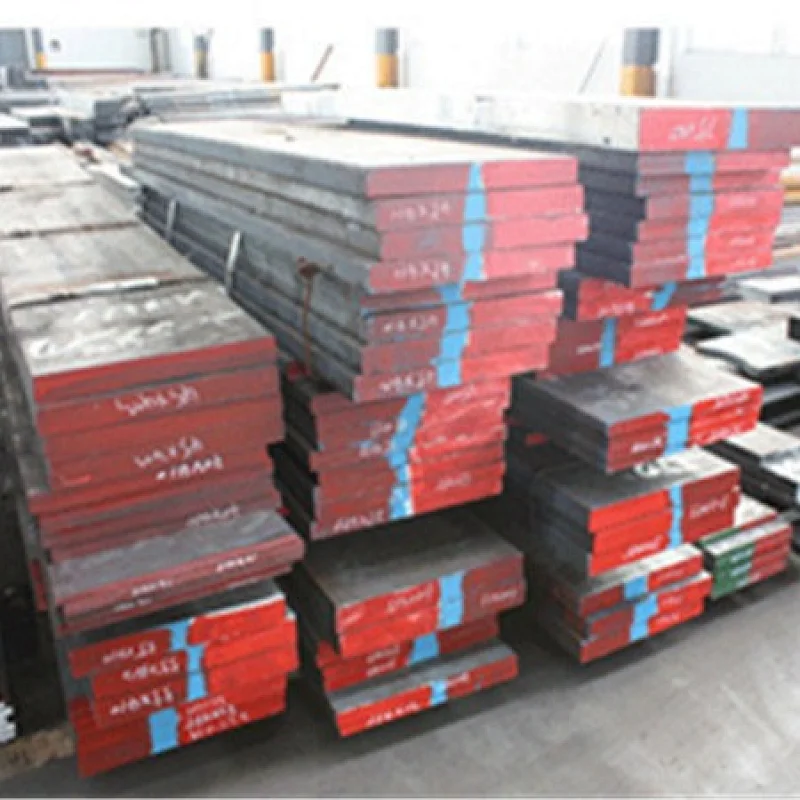

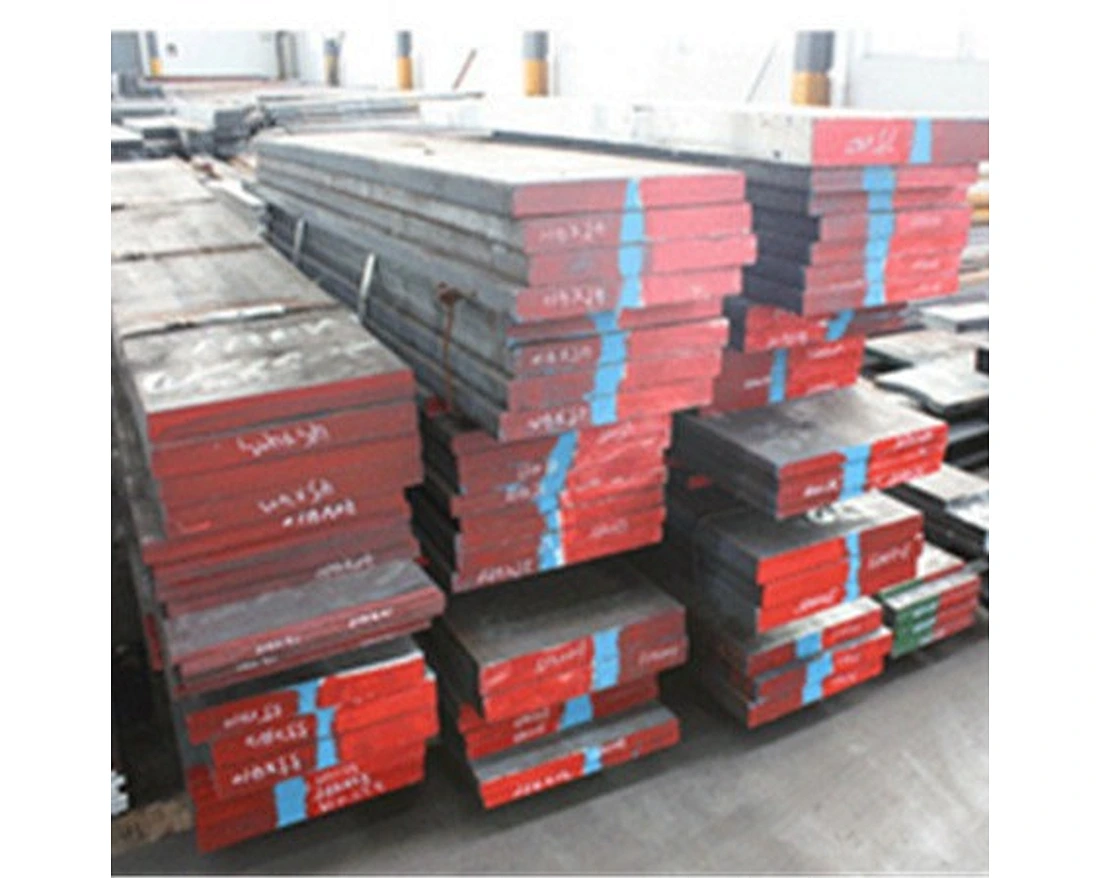

SKD11 tool steel flat is available from our stock, thickness 6-120mm x width 300-600mm. High quality tool steel helps you increasing the lifetime of the mold.
tool steel SKD11
FOB
Quantity:

JIS SKD11 Cold Work Tool Steel

1.2379D2


JIS SKD11 Cold Work Tool Steel is used for making different kinds of cold work molds with high accuracy and long service life, cutting tools and measuring instruments, such as complex-shaped piercing dies, threading screw plates, cold extrusion dies, cold cutting scissors, precision measuring tools etc.

Dimensions

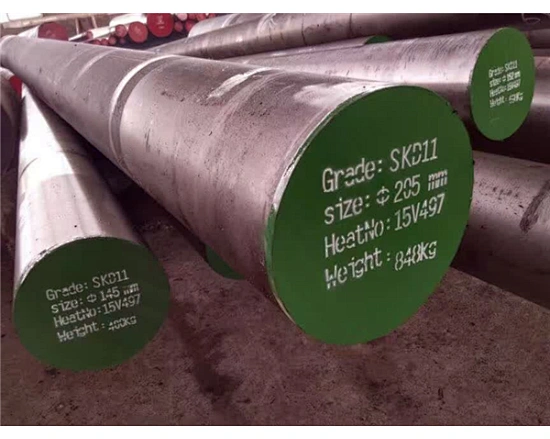

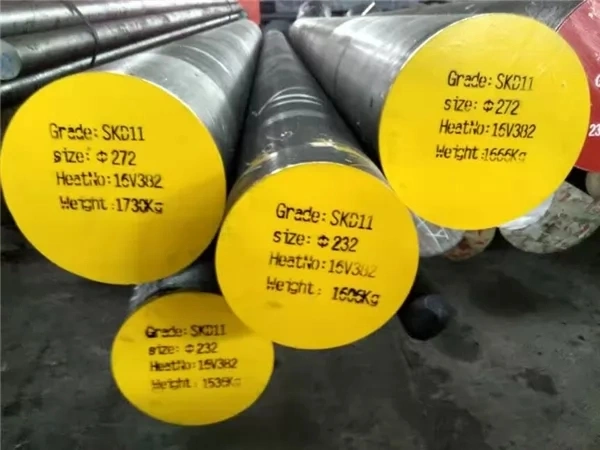

Round: dia.10-700 mm

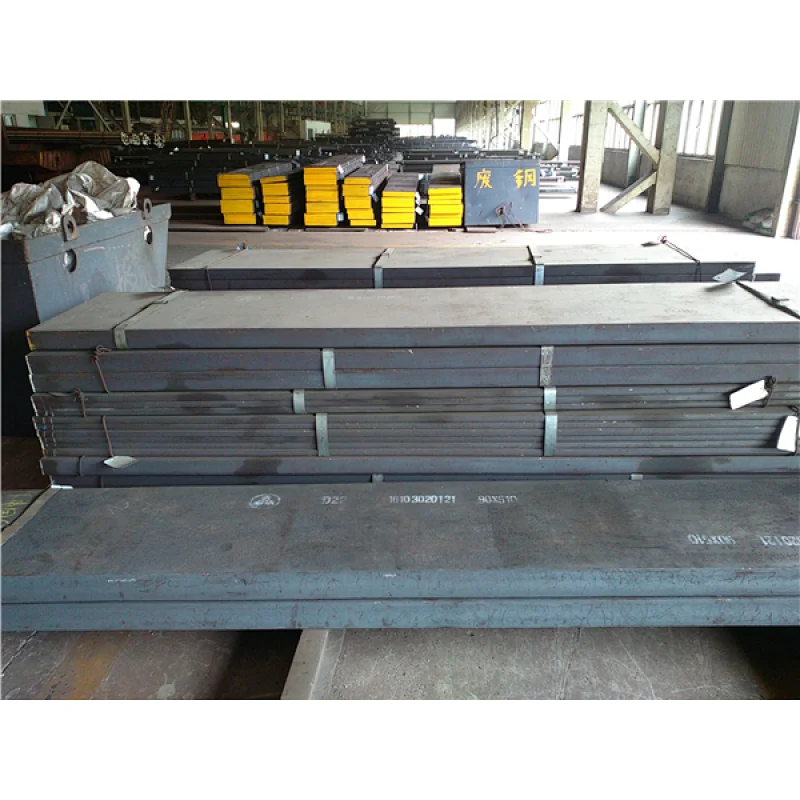

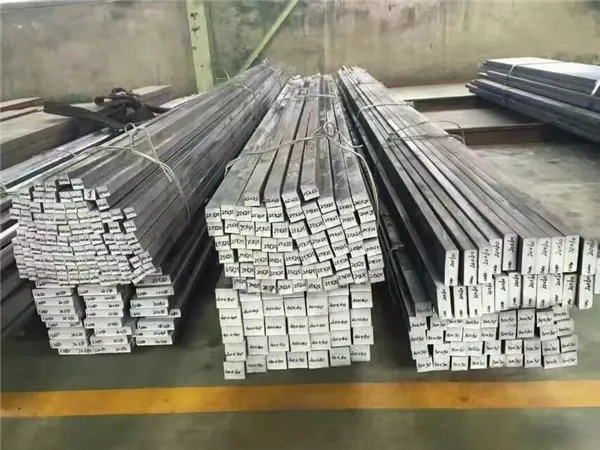

Flat: 6-120 x 40-1000 mm
Block: 80-400 x 100-1000 mm

Delivery Condition
EAF+(ESR) or EAF+LF+VD+(ESR), Hot rolled or Forged, Annealed, Black surface or Machined surface, UT SEP1921 Class3 D/d

Equivalence

AISI / SAE DIN / W.Nr JISGB
D21.2379SKD11Cr12MoV

Chemical Composition(%)

Steel Grade CSiMnPSCrMoV
SKD111.40-1.60≤ 0.40 ≤ 0.60 ≤ 0.030 ≤ 0.030 11.00-13.000.80-1.200.20-0.50
1.23791.45-1.600.10-0.600.20-0.60≤ 0.030 ≤ 0.030 11.00-13.000.70-1.000.70-1.00
D21.40-1.600.10-0.600.20-0.60≤ 0.030 ≤ 0.030 11.00-13.000.70-1.200.50-1.10

Charecteristics
1. With good hardenability and wear resistance.
2. With high oxidation resistance, good corrosion resistance after quenching and polishing, small deformation after heat treatment.

Forging Technique

Heat Temperature Start Forging Temperature Finish Forging Temperature Cooling Method
1120-1160 °C 1050-1090 °C ≥850 °C Thermal Annealing

Heat Treatment
Annealing
800 to 850°C
Slow controlled cooling in furnace at a rate of 10 to 20°C/hr down to approx. 600°C, further cooling in air.
Hardness after annealing: max. 255 HB.

Stress relieving
650 to 700°C
Slow cooling in furnace; intended to relieve stresses set up by extensive machining, or incomplex shapes. After through heating, hold in neutral atmosphere for 1 to 2 hours.

Hardening
1020 to 1040°C
Complex shapes/air, simple shapes/air blast, oil, salt bath from (220 to 250°C or 500 to 550°C).
Holding time after temperature equalization: 15 to 30 minutes.
Obtainable hardness: 63 - 65 HRC.

Tempering
Slow heating to tempering temperature immediately after hardening/time in furnace 1hour for each 20 mm of work piece thickness, but at least 2 hours/cooling in air. For average hardness figures to be obtained, please refer to the tempering chart. For certain cases we recommend to reduce tempering temperature and increase holding time. For certain applications requiring improved retention of hardness, a nitriding treatmentis recommended.
