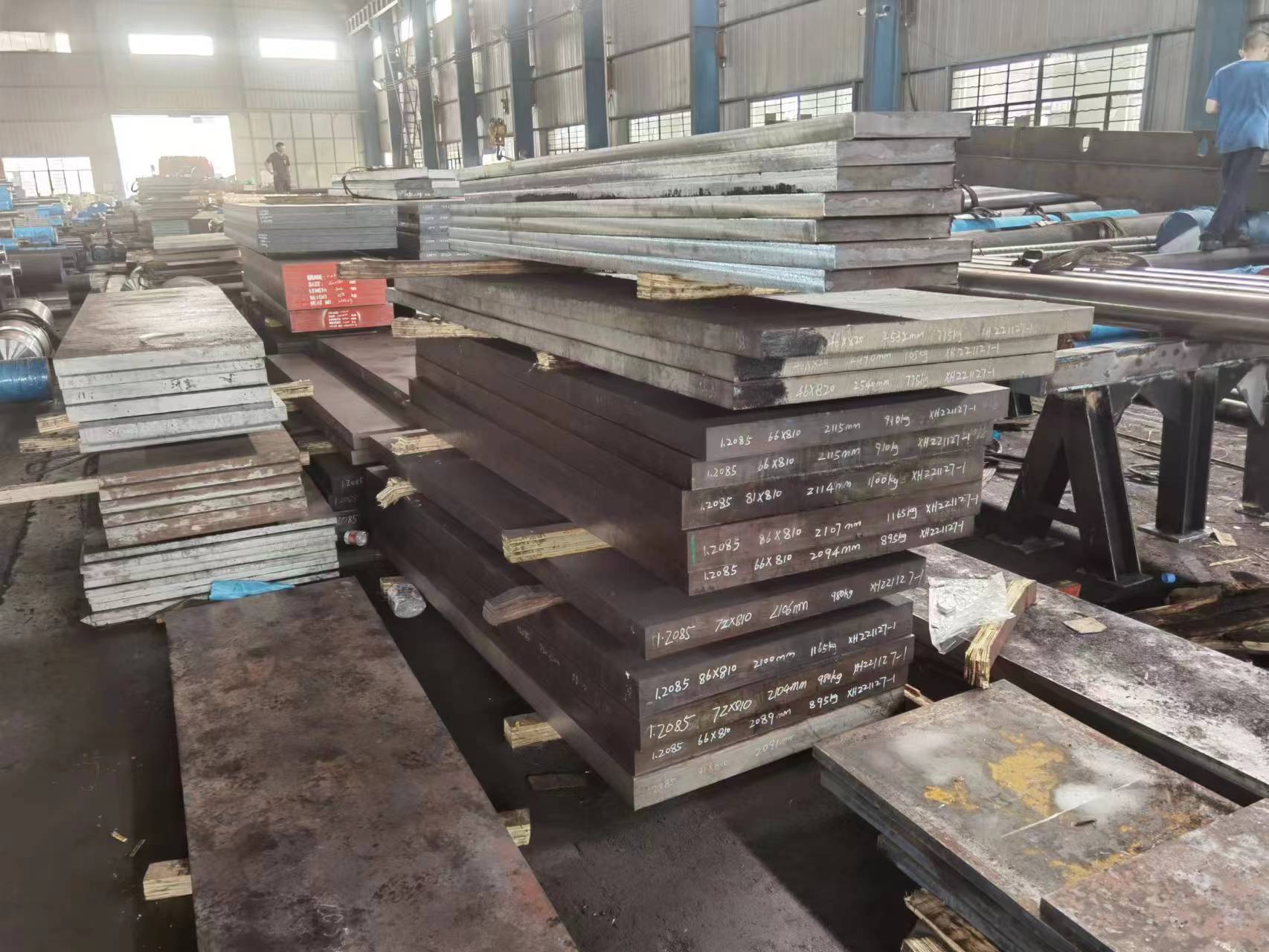

DIN 1.2085 Plastic Mould Steel Flat
Equivalence
| AlSl / SAE | DlN /W.Nr | JlS | GB | ||||||||
| 420FM | 1.2085 |
Chemical Composition (%)
| C | Si | Mn | P | S | Cr | ||||||
| 0.28 | ≤ | ≤ | ≤ | 0.05 | 15.00 | ||||||
| 0.38 | 1.00 | 1.40 | 0.030 | 0.10 | 17.00 |
| Shape | Think /Dia.(mm) | Width(mm) | ||||||
| Flat | 6-200 | 20-900 | ||||||
| Block | 150-500 | 200-1000 |
Delivery Condition
EAF+LF+VD+(ESR), Hot Rolled or Forged, Black surface or Machined surface, UT 100% Passed
We offer two conditions of steel grade of 1.2085
Annealed: Hardness≤235HB
Q+T: Hardness 33-38HRC or as customized
DIN 1.2085 is a kind of Corrosion-resistant tool steel with sulphur for plastic molds as well as aggressive plastics
and for application fields, where a corrosion resistance, good machinability and good mechanical properties are important. The same properties like 1.2316 with the addition of sulphur.
DIN 1.2085 is mainly used in processes with chemically aggressive and acidic thermoplastics, PVC-aminoplastics, plastics for injection mold inserts or for special machine parts in the food industry. Used also in the application field
of the automobile industry and machine construction.
| Heat Temperature | Start Forging Temperature | Finish Forging Temperature | Cooling Method | ||||||||
| Slowly heat to 800℃，then quickly heat to fin aL forging temperatule | 1160-1200℃ | >=850℃ | Ash coolinor sand cooling,with timely annealing | ||||||||
AnnealingHeat Treatment
840 to 870°C
Slow controlled cooling in furnace at a rate of 10 to 20°C/hr down to approx. 600°C, further cooling in air.
Hardness after annealing: max. 229 HB.
Stress relieving
Approx. 650°C
Slow cooling in furnace; intended to relieve stresses set up by extensive machining, or in complex shapes.
After through heating, hold in neutral atmosphere for 1 - 2 hours.
Hardening
1000 to 1050°C / Oil, air
Holding time after temperature equalization: 15 to 30 minutes.
Obtainable hardness: 53-56 HRC
Tempering
100 to 200°C (212 to 392°F)
Slow heating to tempering temperature immediately after hardening / time in furnace 1 hour for each 20 mm of work piece thickness but at least 2 hours / cooling in air.
What we can offer?
We offer a wide range of steel products in a wide variety of dimensions and executions, acc.to the common international specifications or customerized.
Machining and heat treatment are available.
Also, we advise you in choosing the right materials.
Solid round bar
Flat bar
Square bar
Hexagon bar
Block
Plate
Sheet
Wire rod
Strip
AISI | DIN | JIS | Stock | Application | |
Hot Work Tool Steel | H11 | 1.2343 | SKD6 | √ | Die Casting Dies,Extrusion Dies, Hammer Dies, |
H13 | 1.2344 | SKD61 | √ | ||
H10 | 1.2365 | SKD7 |
| ||
—— | 1.2367 | —— |
| ||
L6 | 1.2714 / 1.2713 | SKT4 | √ | ||
H12 | 1.2606 | SKD62 |
| ||
H21 | 1.2581 | SKD5 | √ | ||
Cold Work Tool Steel | D3 | 1.2080 | SKD1 | √ | Cutting Tools, Punching Tools, Shear Bladers, Reamers, Thread Rolling Dies, Calipers, Sockets etc. |
—— | 1.2601 | ~SKD11 | √ | ||
D2 | 1.2379 | ~SKD11 | √ | ||
—— | 1.2379 MOD | DC53 (Daido) | √ | ||
D6 | 1.2436 | —— |
| ||
O1 | 1.2510 | SKS3 | √ | ||
O2 | 1.2842 | —— |
| ||
A2 | 1.2363 | SKD12 |
| ||
S1 | 1.2550 | —— |
| ||
S7 | 1.2357 | —— |
| ||
—— | 1.2767 | SKT6 |
| ||
L2 | 1.2210 | —— |
| ||
Plastic | P20 | 1.2311 | —— | √ | Mold Base, Core & Cavity, Bumper Mold etc. |
P20+Ni | 1.2738 | —— | √ | ||
P20+S | 1.2312 | —— | √ | ||
—— | 1.2316 | —— |
| ||
420 | 1.2083 | SUS420J2 | √ | ||
—— | —— | NAK80 (Daido) | √ | ||
Alloy Steel | 4120 | 25CrMo4 / 1.7218 | SCM420 |
| Shafts, Gears, Drillers, Chains, Bolts, Nuts, Pins, Suds, Keys, Bites, Crankshafts, Connecting Rods, Came, Couplings etc. |
4135 | 34CrMo4 / 1.7220 | SCM435 |
| ||
4130 | 34CrMo4 / 1.7220 | SCM430 | √ | ||
4140 | 42CrMo4 / 42CrMoS4 / 1.7225 | SCM440 | √ | ||
4142 | 41CrMo4 / 1.7223 | SCM440 |
| ||
4145H | —— | —— |
| ||
4330V | —— | —— |
| ||
4340 | 34CrNiMo6 / 1.6582 | SNCM439 |
| ||
5115 | 16MnCr5 / 16MnCrS5 / 1.7131 |
|
| ||
5120 | 20MnCr5 / 20MnCrS5 / 1.7147 | SMnC420H |
| ||
5140 | 41Cr4 / 41CrS4 / 1.7035 | SCr440 | √ | ||
8620 | 21NiCrMo2 / 1.6523 | SNCM220 |
| ||
8640 | 40NiCrMo2-2 / 1.6546 | SNCM240 |
| ||
—— | 18CrNiMo7-6 / 17CrNiMo6 / 1.6587 | —— |
| ||
9840 | 36CrNiMo4 / 1.6511 | —— |
| ||
E71400 | 41CrAlMo7-10 / 1.8509 | SACM1 |
| ||
—— | 34CrAlNi7 / 1.8550 | —— |
| ||
Bearing Steel | E52100 | 100Cr6 / 1.3505 | SUJ2 | √ | Bearing, Shafts |
—— | 100CrMn6 / 1.3520 | —— |
| ||
—— | 100CrMo7-3 / 1.3536 | —— |
| ||
Spring Steel | 5155 | 55Cr3 / 1.7176 | SUP9 |
| Springs |
6150 | 51CrV4 / 1.8159 | SUP10 |
| ||
9261 | 60CrSi7 / 1.7108 | —— |
| ||
Carbon Steel | 1010 | CK10 / C10E / 1.1121 | S10C |
| Shafts, Chains, Bolts, Nuts, Pins, Suds, Keys, Bites, Came, Couplings etc. |
1020 | C22 / 1.0402 | S20C | √ | ||
1040 | CK40 / C40E / 1.1186 | S40C | √ | ||
1045 | CK45 / C45E / 1.1191 | S45C | √ | ||
1050 | CK50 / C50E / 1.1206 | S50C | √ | ||
1055 | CK55 / C55E / 1.1203 | S55C |
| ||
1064 | CK60 / C60E / 1.1221 | S58C |
| ||
High Speed Tool Steel | M2 | 1.3343 | SKH51 | √ | Reamer, |
M7 | 1.3348 | —— |
| ||
M42 | 1.3247 | SKH59 | √ | ||
M35 | 1.3243 | SKH55 | √ | ||
T1 | 1.3355 | SKH2 |
| ||
T15 | 1.3202 | —— |
| ||
T42 | 1.3207 | SKH57 |
|
Note:
1). √ means we have stoc.
2). Delivery Condition:
Smelting: EAF+LF+VD (+ESR).
Making: Hot rolled, Cold rolled, Forged, Cold Drawn.
Heat Treatment: Untreated, Annealing, N+T, Q+T.
Surface: Black, Peeled, Turned, Milled, Grinded, Polished.
