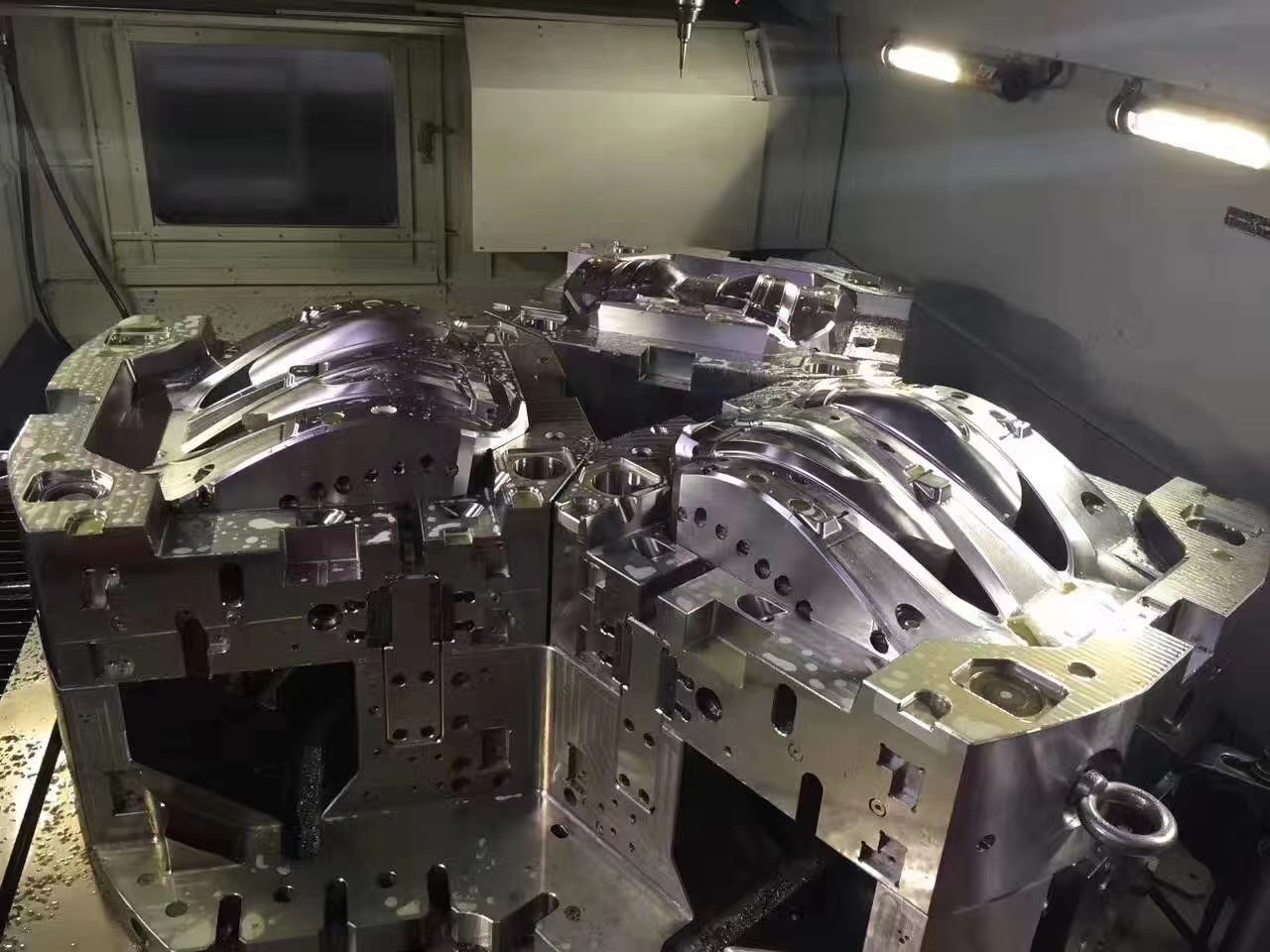

Mould Base


Ningshing Precision Machinery is specializing in Mould Base Business, producing the Medium-Large Sized mold bases for auto, appliance, aerospace industries, and providing service to the domestic and foreign well-known OEMs, mold makers and die casting factories.

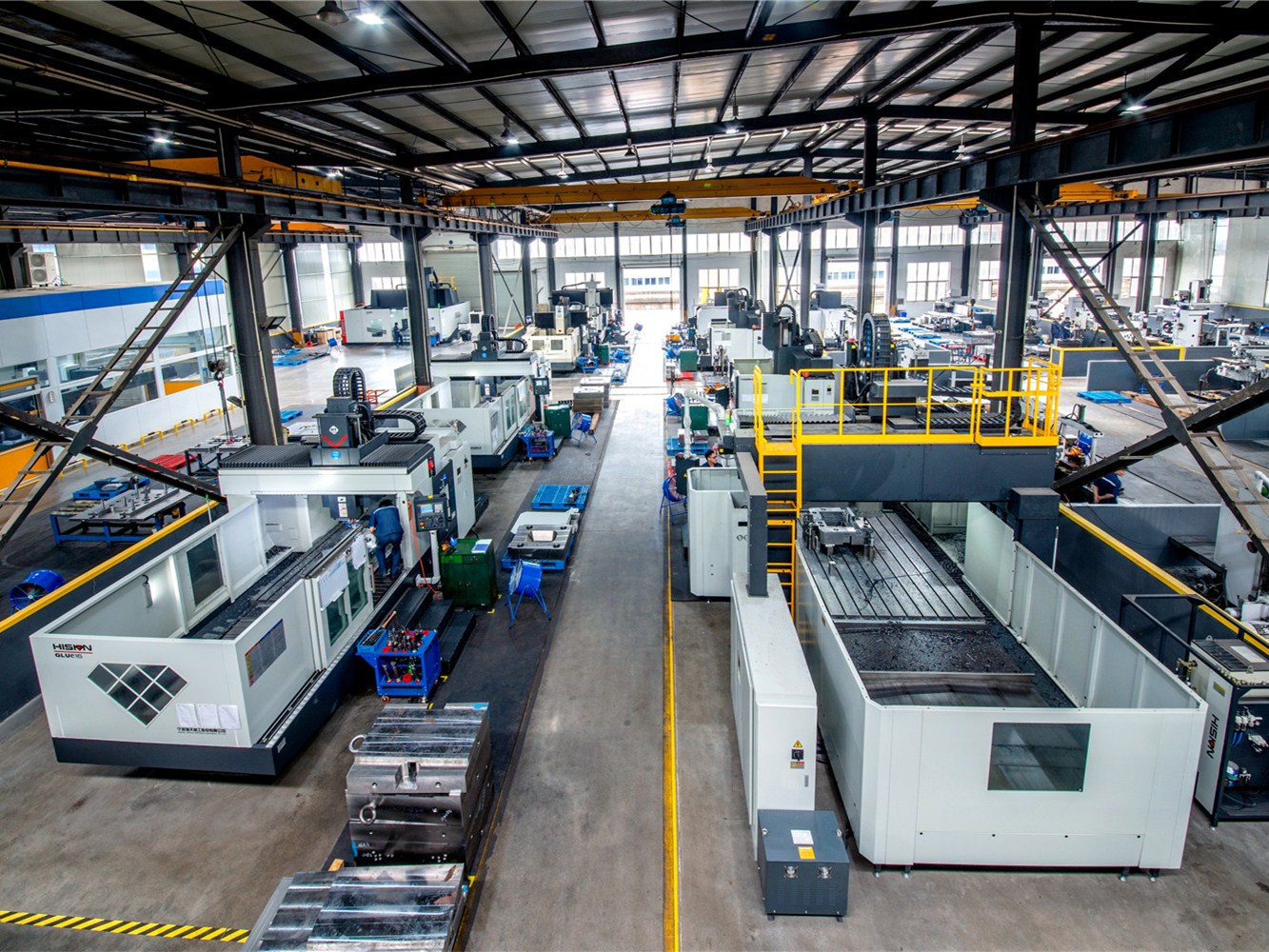

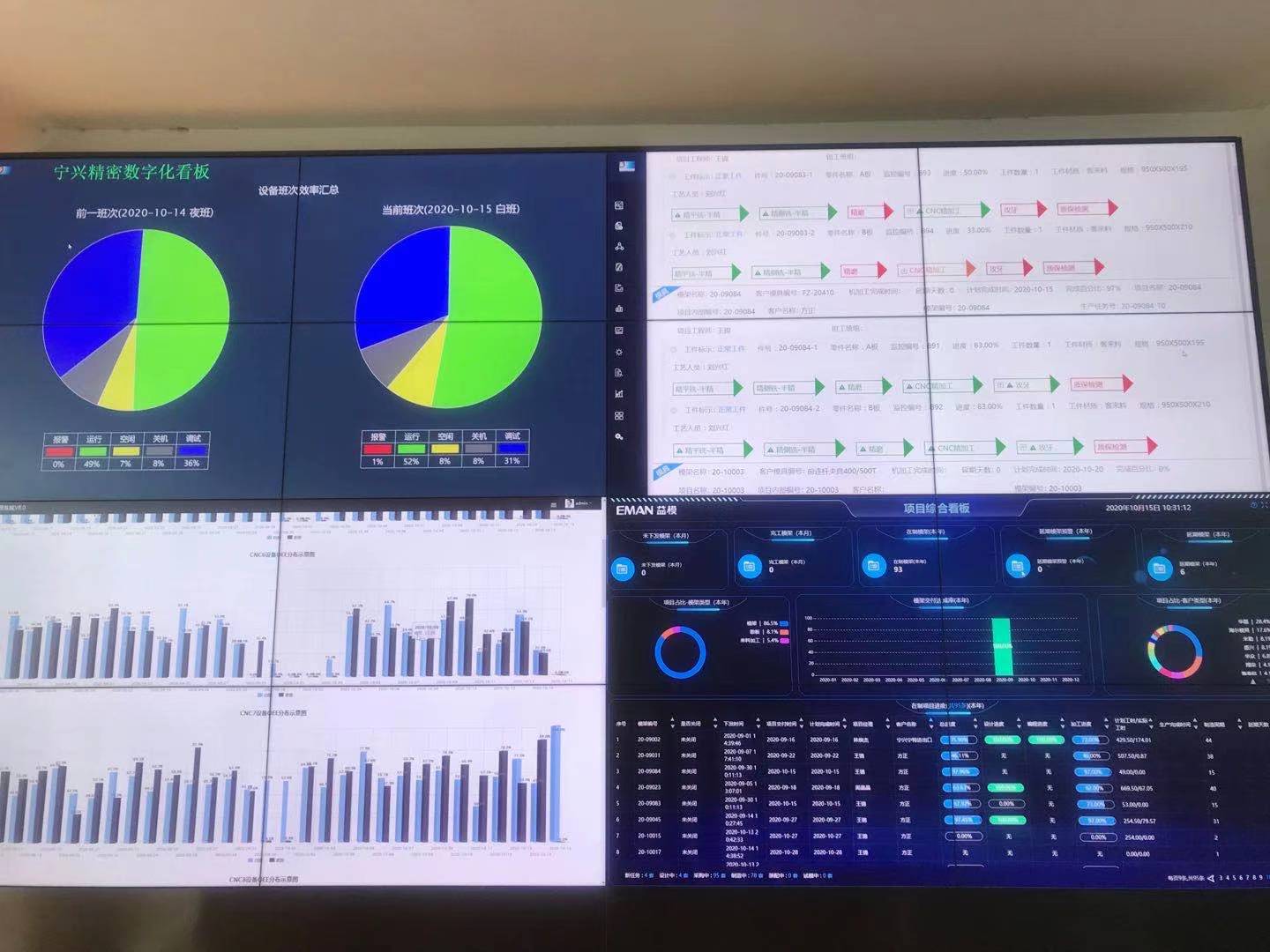

24 sets of CNC machining centers are in our workshop. Using ERP system, we do warehouse in and out management to ensure the traceability of each piece of steels in stock. Using MES system, we do the production site management for optimizing the process route to direct the production effectively.

Abundant stock of high quality steels, Advanced machining equipments, Skilled operators, Standardized management process guarantee the high quality of  final products with fast delivery time.

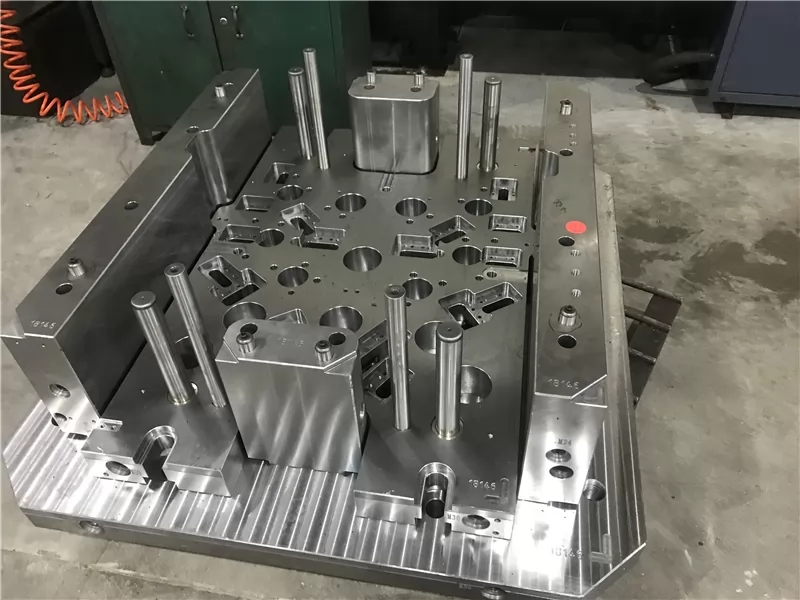

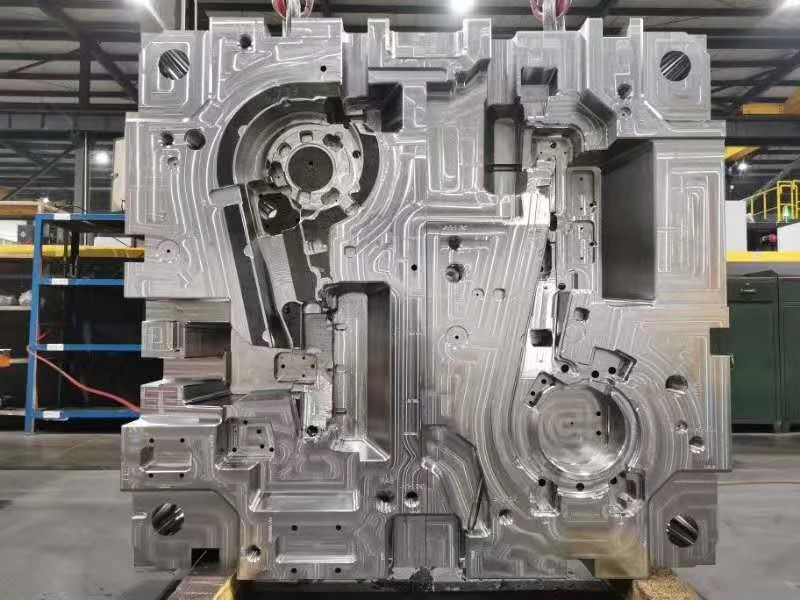

Product Name Customized Mould Base for Plastic Mould & Die Casting Die
Material 1.2311/P20; 1.2738/718; 1.2083/420/4Cr13/S136; 1.2344/H13; NAK80; 1.1730/C45/S50C/S355 etc.
CNC Machining Center 24 sets (5-axis & 3-axis)
Dimension Max 3500 x 2800 mm
Load Capacity Max 25 ton / piece
Tolerance Max ±0.02 mm
Deep Hole Max 2000 mm (drilled from one side)
Heat Treatment Furnace 3 sets (vacuum)
Nitriding Furnace 2 sets
Mould Runner: Hot & Cold
Cavity Single & Multiple
Mould Standard HASCO, DME, MISUMI, LKM
Design Software CAD, UG, Pro/E, Catia etc.
Measurement Method: CMM, Micrometer
Production Management System MES, ERP, SOP
Certification & Quality ISO 9001:2015, TUV, SGS
Application Automobile, Household Appliance, Medical Device, Communications, Electronics etc.

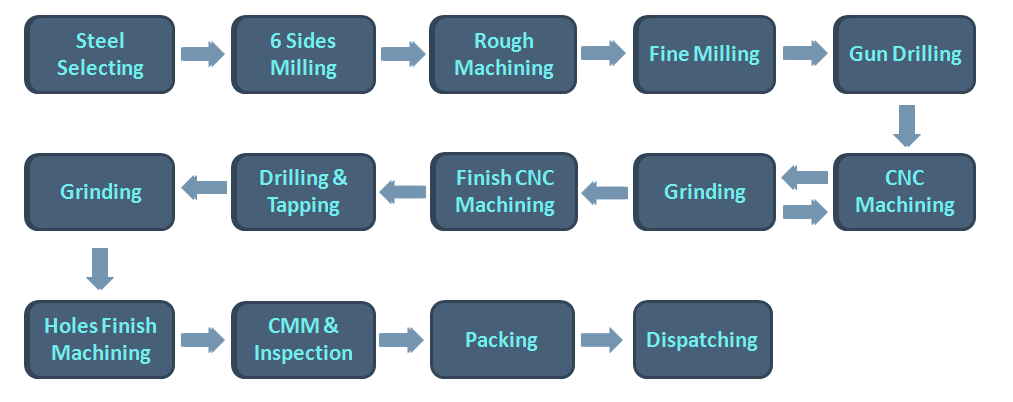

Manufacturing Process

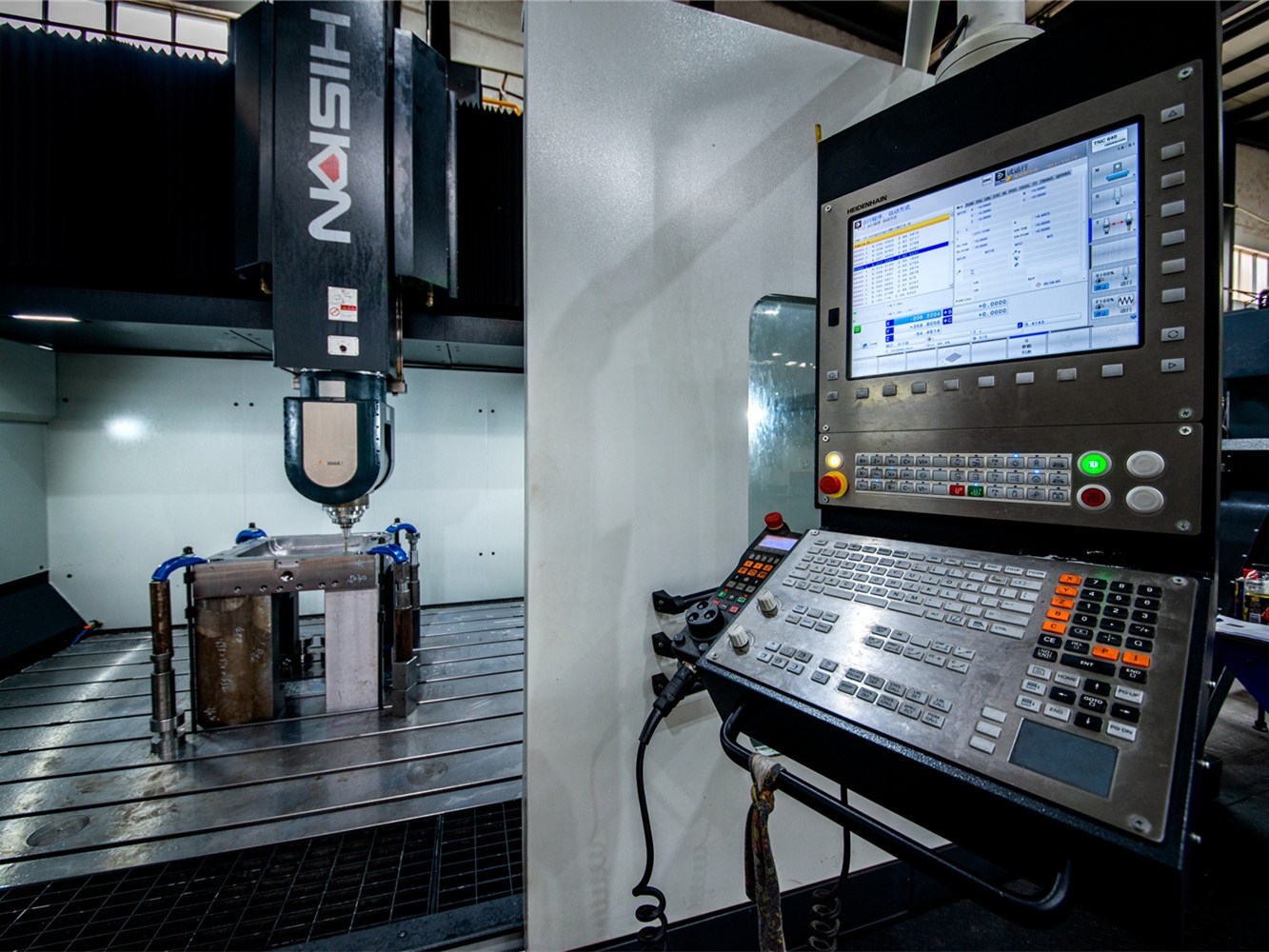

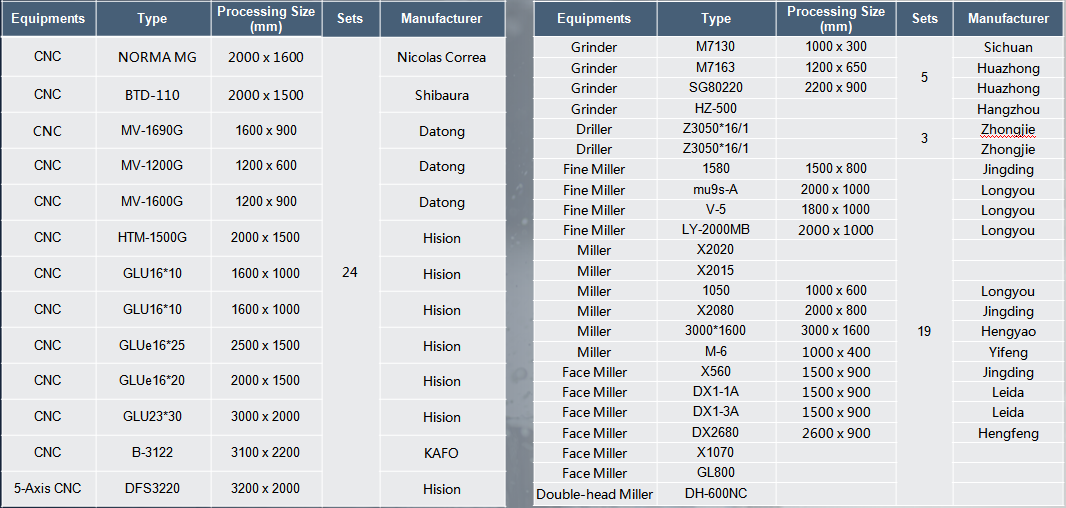

Machining Equipments

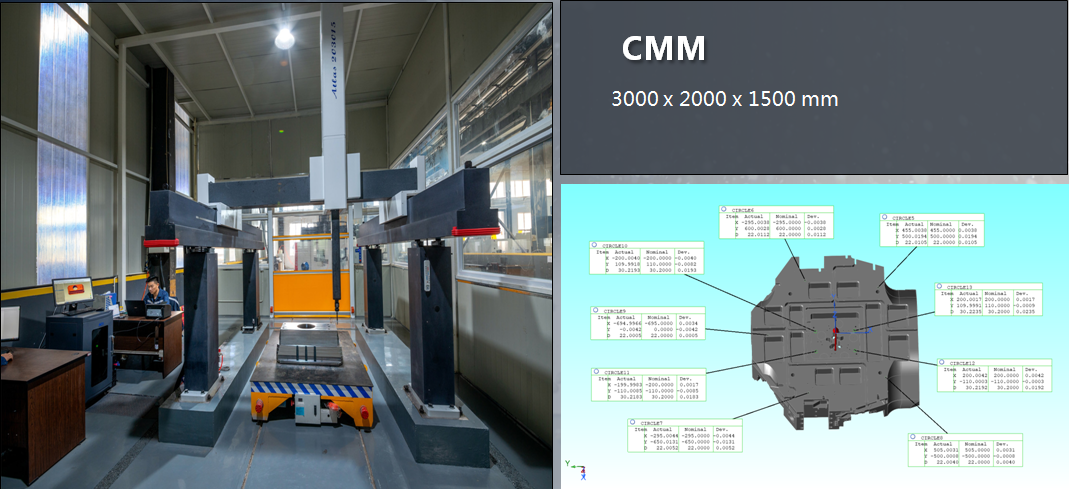

Inspection Equipments
